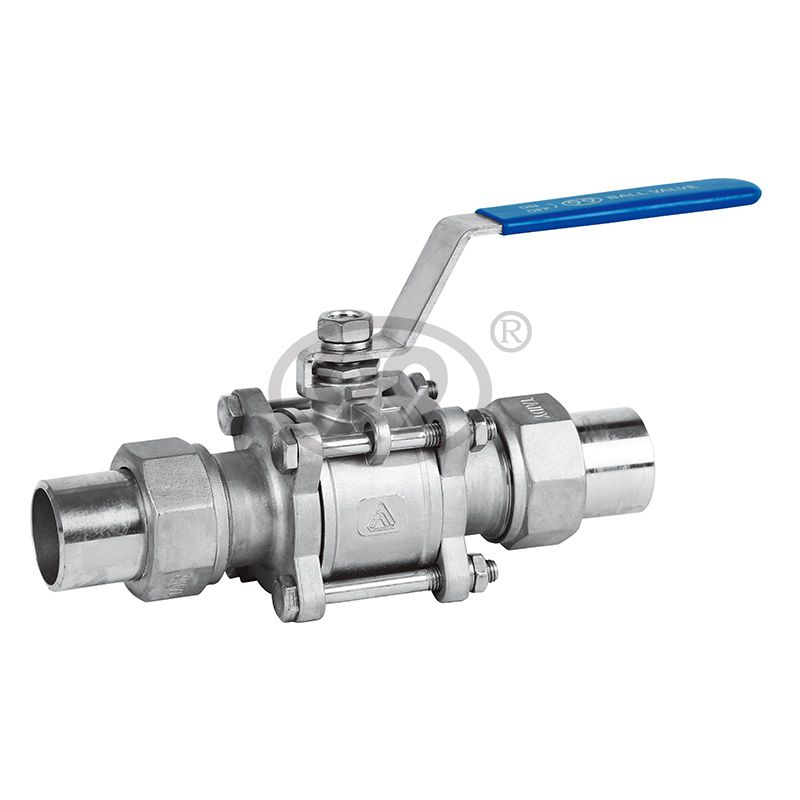

3-PC Butt Weld Ball Valve (Full Bore 1000PSI)

Production standard:

1. The design according to ASME B16.34.

2. Test standard according to API 598.

3. Working pressure: 6.9Mpa

4. Shell test pressure: 10.4Mpa

5. Sealing test pressure: 7.6Mpa

6. Gas seal test pressure: 0.4-0.7Mpa

7. Working temperature: -40℃ - 180℃

8. Applicable medium: water, oil, natural gas

PRODUCT DESCRIPTION

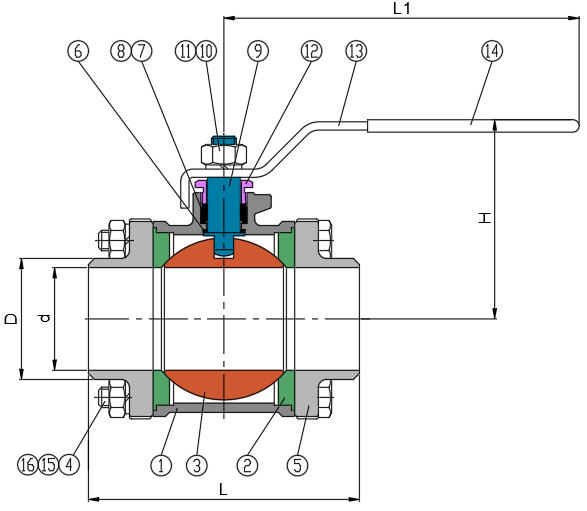

Size Specification:

SIZE(inch)ΦdΦDLL1H
1/4”12.516.45310548
3/8”12.518.65710548
1/2”1522.67212650
3/4”2028.88012652
1”2534.88514465
1 1/4”3244.210514470
1 1/2”3850.811319086
25062.813219093
2 1/26575.4160224116
37594182224125
4100114220295185


Material List:

ITEMPARTSMATERIAL
1Valve bodyCF8/CF8M(SS304/SS316)
2SeatPTFE
3BallCF8/CF8M(SS304/SS316)
4Bolt washer A2-70 (SS304)
5CapCF8/CF8M(SS304/SS316)
6Stem sealPTFE
7Lower packingPTFE
8Upper packingPTFE
9StemCF8/CF8M(SS304/SS316)
10Spring washerA2-70 (SS304)
11Stem nutA2-70 (SS304)
12Gland nutCF8(SS304)
13HandleStainless steel
14Handle cover Plastic
15Cap nut A2-70 (SS304)
16Cap boltA2-70 (SS304)
