Production standard:
1. Thread dimension as per BSPT/DIN2999/NPT/etc.
2. Working pressure: 6.9Mpa
3. Shell test pressure: 10.4Mpa
3. Sealing test pressure: 7.6Mpa
4. Gas seal test pressure: 0.4-0.7Mpa
5. Working temperature: -40℃ - 180℃
6. Applicable medium: water, oil, natural gas
PRODUCT DESCRIPTION

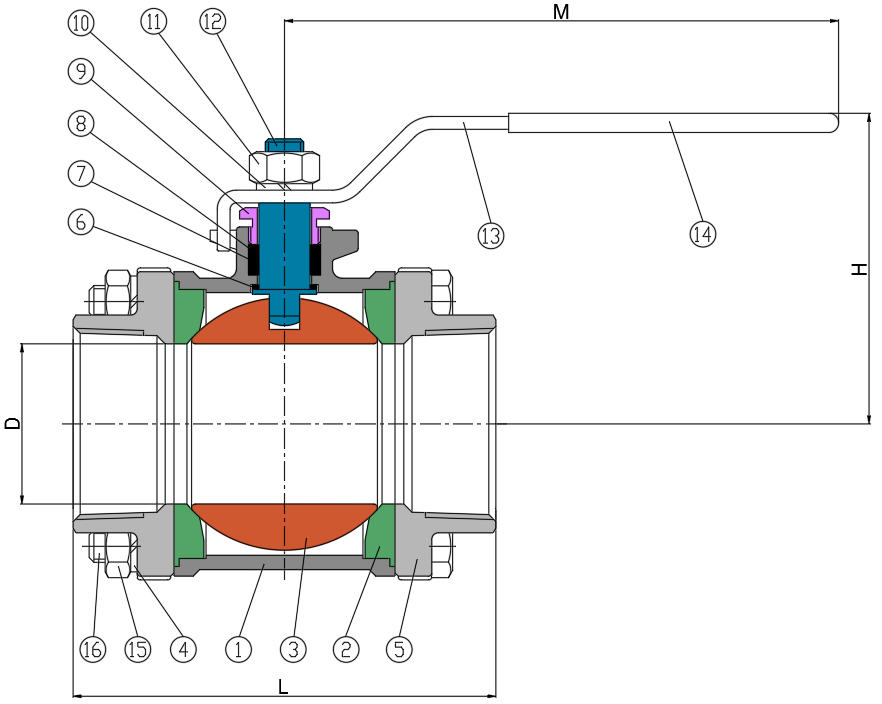

Size Specification:
SIZE(inch) | ΦD | L | M | H |
1/4” | 10.5 | 72 | 105 | 48 |
3/8” | 12.5 | 72 | 105 | 48 |
1/2” | 15 | 72 | 126 | 50 |
3/4” | 20 | 80 | 126 | 52 |
1” | 25 | 85 | 144 | 65 |
1 1/4” | 32 | 105 | 144 | 70 |
1 1/2” | 38 | 113 | 190 | 86 |
2” | 50 | 132 | 190 | 93 |
2 1/2” | 65 | 170 | 224 | 116 |
3” | 75 | 182 | 224 | 125 |
4” | 100 | 220 | 295 | 180 |
Material List:
ITEM | PARTS | MATERIAL |
1 | Valve body | CF8/CF8M(SS304/SS316) |
2 | Seat | PTFE |
3 | Ball | CF8/CF8M(SS304/SS316) |
4 | Bolt washer | A2-70 (SS304) |
5 | Cap | CF8/CF8M(SS304/SS316) |
6 | Stem seal | PTFE |
7 | Lower packing | PTFE |
8 | Upper packing | PTFE |
9 | Gland nut | CF8(SS304) |
10 | Spring washer | CF8(SS304) |
11 | Stem nut | A2-70 (SS304) |
12 | Stem | CF8/CF8M(SS304/SS316) |
13 | Handle | Stainless steel |
14 | Handle cover | Plastic |
15 | Cap nut | A2-70 (SS304) |
16 | Cap bolt | A2-70 (SS304) |
