Production Standard:
1. The design according to GB/T 12237-2007
2. Pressure test according to GB/T 13927-2008
3. Face to Face dimensions as per DIN 3202-F4 series
4. Flange dimensions according to DIN2635
5. Antistatic device and fire safe design
6. Actuator dimensions of connection according to ISO 5211

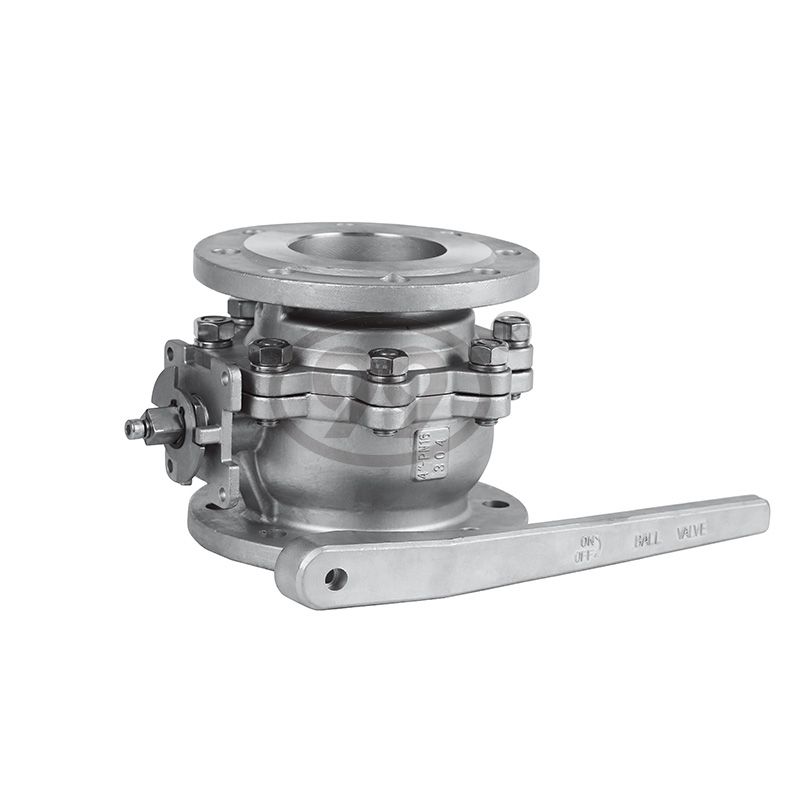

PRODUCT DESCRIPTION
Product performance specification:
1. Working Pressure: 4Mpa
2. Low pressure sealing test: 0.6Mpa
3. High pressure sealing test: 4.4Mpa
4. Shell test: 6Mpa
5. Working temperature: -40℃~180℃
6. Applicable Medium: Q41F-16P: NHO3 Q41F-16R: CH3COOH

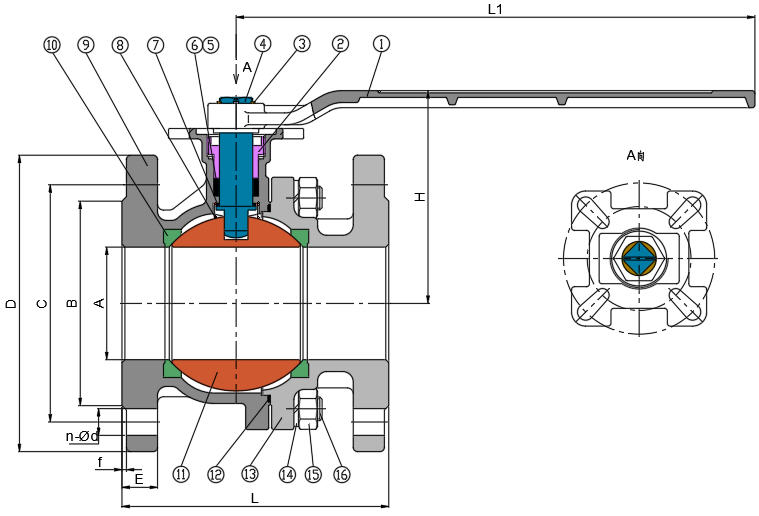

Size Specification:
Size(inch) | ΦA | ΦB | ΦC | ΦD | E | f | n-Φd | H | L1 | L |
1/2” | 15 | 45 | 65 | 95 | 16 | 2 | 4-Φ14 | 84 | 130 | 115 |
3/4” | 20 | 58 | 75 | 105 | 18 | 2 | 4-Φ14 | 84 | 130 | 120 |
1” | 25 | 68 | 85 | 115 | 18 | 2 | 4-Φ14 | 93 | 160 | 125 |
1 1/4” | 32 | 78 | 100 | 140 | 18 | 2 | 4-Φ18 | 102 | 160 | 130 |
1 1/2” | 38 | 88 | 110 | 150 | 18 | 3 | 4-Φ18 | 135 | 220 | 140 |
2” | 50 | 102 | 125 | 165 | 20 | 3 | 4-Φ18 | 145 | 220 | 150 |
2 1/2” | 65 | 122 | 145 | 185 | 22 | 3 | 8-Φ18 | 174 | 350 | 170 |
3” | 75 | 138 | 160 | 200 | 24 | 3 | 8-Φ18 | 188 | 350 | 180 |
4” | 100 | 162 | 190 | 235 | 24 | 3 | 8-Φ22 | 203 | 350 | 190 |
Material List:
ITEM | PARTS | MATERIAL |
1 | Handle | Stainless steel |
2 | Gland nut | CF8M/SS316/SCS14 |
3 | Circle | A2-70 (SS304) |
4 | Stem | CF8/CF8M(SS304/SS316) |
5 | Upper packing | PTFE |
6 | Lower packing | PTFE |
7 | Stem seal | PTFE |
8 | Antistatic spring | 321 |
9 | Valve body | CF8/CF8M(SS304/SS316) |
10 | Seat | PTFE |
11 | Ball | CF8/CF8M(SS304/SS316) |
12 | Body seal | PTFE |
13 | Cap | CF8/CF8M(SS304/SS316) |
14 | Spring washer | A2-70 (SS304) |
15 | Nut | A2-70 (SS304) |
16 | Stud | A2-70 (SS304) |
