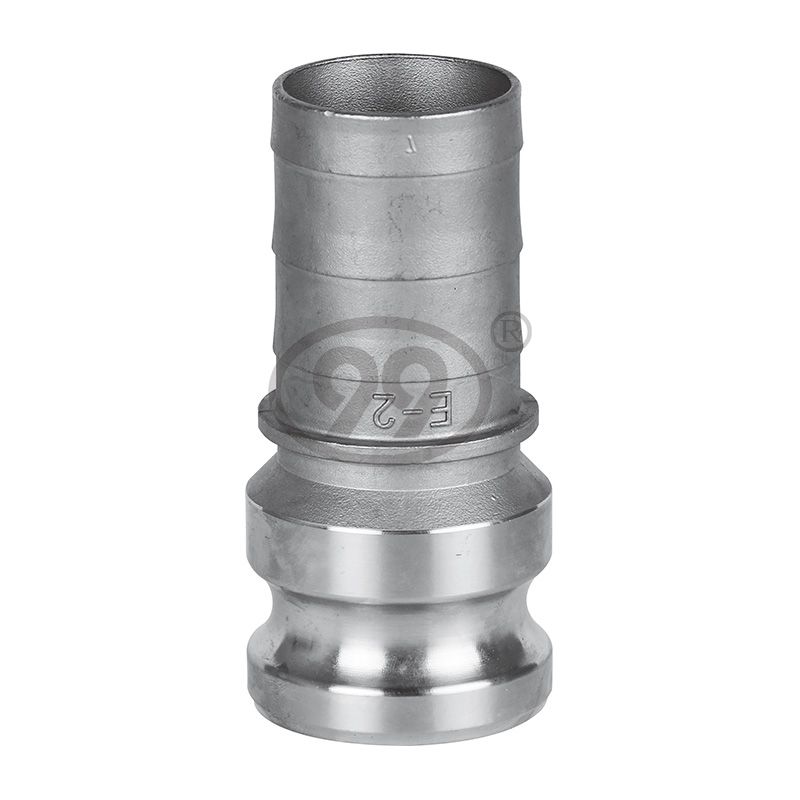

Quick couplings series: unique design, easy to transport, simple structure, easy to assemble, perfect sealing performance.
PRODUCT DESCRIPTION

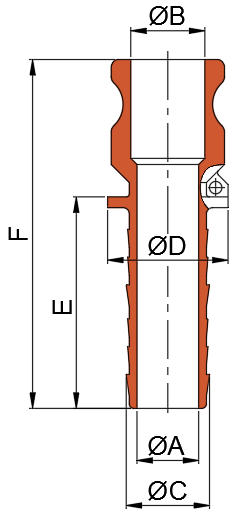

| Size (inch) | A | B | C | D | E | F |
| 1/2" | 14 | 21 | 20.5 | 33 | 63.5 | 102 |
| 3/4" | 14 | 21 | 20.5 | 33 | 63.5 | 102 |
| 1" | 20 | 24 | 27 | 39 | 68.5 | 113 |
| 1 1/4" | 26 | 29 | 33.7 | 48 | 72 | 125 |
| 1 1/2" | 32 | 36 | 40 | 56 | 73 | 128 |
| 2" | 45 | 45 | 52.7 | 68 | 88 | 146 |
| 2 1/2" | 56 | 57 | 65.5 | 80 | 94.5 | 158 |
| 3" | 67 | 73 | 78 | 102 | 109 | 177 |
| 4" | 92 | 98 | 103 | / | 100 | 176 |
| 5" | 117 | 124 | 129 | / | 121 | 195 |
| 6" | 142 | 150 | 155 | / | 132 | 216 |
| Size (inch) | A | B | C | D | E | F |
| 1/2" | 8.5 | 21.5 | 13 | 18 | 41 | 74.5 |
| 3/4" | 14 | 21.5 | 19 | 24.5 | 45 | 79.5 |
| 1" | 20 | 24 | 25 | 31 | 50 | 91 |
| 1 1/4" | 26.5 | 30 | 32 | 38 | 55 | 104 |
| 1 1/2" | 32 | 37.5 | 38 | 44.5 | 60 | 111 |
| 2" | 45 | 46.5 | 51 | 57.5 | 68 | 124 |
| 2 1/2" | 57.5 | 58 | 64 | 71 | 77 | 137 |
| 3" | 69 | 74.5 | 76 | 84 | 87 | 150 |
| 4" | 94 | 101.5 | 102 | 110 | 96 | 161 |
| General information about 99 camlock quick couplings | |
| Material | SS304,304L,316,316L/SCS313,314/CF8,CF3,CF8M,CF3M |
| Product Size | DN6-DN100 |
| Working pressure | PN16~PN64 |
| Working temperature | -30-185°C |
| Connection type | Thread(screw), Socket welded, Hose connection |
| Thread standard | DIN2999, BSP, BSPT, NPT, Metric(ISO) |
| Production process | Mold making, Precision casting(Investment Casting), Testing, CNC machining, Testing, Assembling |
| Certificate | ISO9001, National Certificate, SGS. (Other certificates can be applied with each shipment) |
| Applications | Fluid and pipeline transportation, Petroleum industry, Chemical and metallurgy, Medicine and Food industry |
| Package | Paper box with woven bag/Wooden Box/As customers' requirements |
| Delivery | Based on quantity, normally 30-45 days / Delivery from Tianjin port or as customers' choice |
