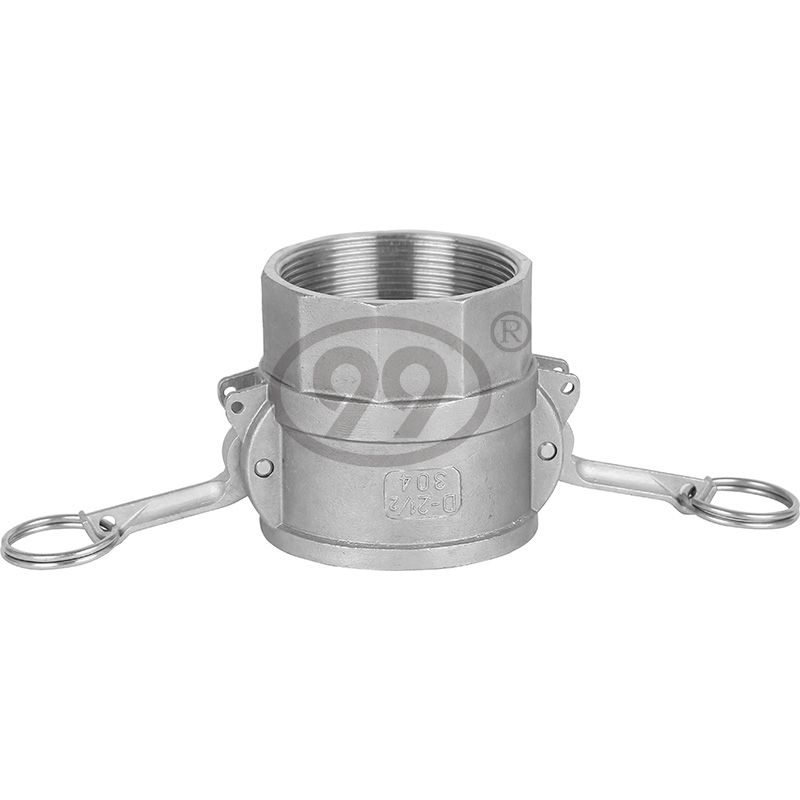

Quick couplings series: unique design, easy to transport, simple structure, easy to assemble, perfect sealing performance.
PRODUCT DESCRIPTION

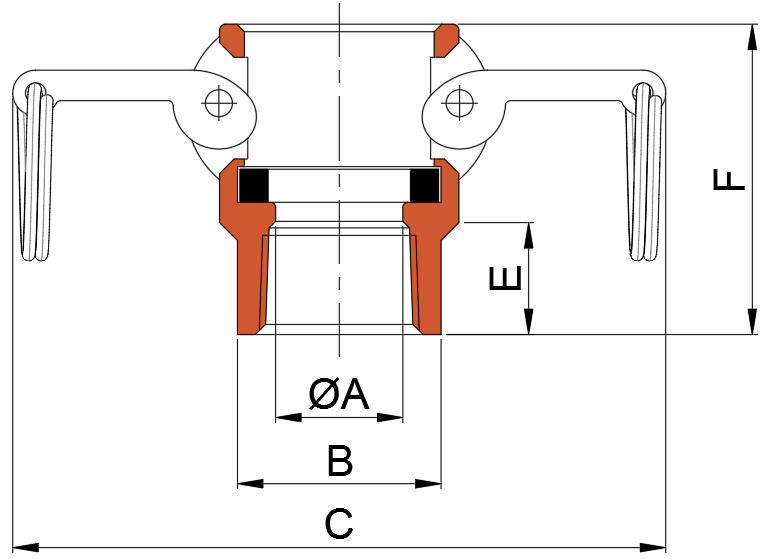

| Size (inch) | A | B | C | E | F |
| 1/2" | 15 | 27 | 109 | 19 | 51 |
| 3/4" | 20 | 33 | 109 | 20 | 52 |
| 1" | 25 | 40 | 129 | 22 | 61 |
| 1 1/4" | 32 | 48 | 172 | 21 | 68 |
| 1 1/2" | 38 | 56 | 180 | 23 | 71 |
| 2" | 50 | 67 | 190 | 25 | 78 |
| 2 1/2" | 64 | 83 | 216 | 30 | 87 |
| 3" | 76 | 96 | 233 | 33 | 92 |
| 4" | 99 | 127 | 261 | 36 | 96 |
| 5" | 126 | 154 | 287 | 43 | 102 |
| 6" | 150 | 180 | 359 | 46 | 116 |
| Size (inch) | A | B | C | E | F |
| 1/2" | 17.5 | 25.5 | 109 | 15 | 45 |
| 3/4" | 20 | 31 | 109 | 18.5 | 48 |
| 1" | 25 | 38 | 129 | 20 | 57 |
| 1 1/4" | 32 | 47 | 172 | 22 | 66 |
| 1 1/2" | 38 | 53 | 180 | 22.5 | 68 |
| 2" | 50 | 65 | 190 | 26 | 76.5 |
| 2 1/2" | 65 | 81 | 216 | 30.5 | 84 |
| 3" | 76 | 94 | 233 | 33.5 | 89 |
| 4" | 101 | 120 | 261 | 38 | 95 |
| General information about 99 camlock quick couplings | |
| Material | SS304,304L,316,316L/SCS313,314/CF8,CF3,CF8M,CF3M |
| Product Size | DN6-DN100 |
| Working pressure | PN16~PN64 |
| Working temperature | -30-185°C |
| Connection type | Thread(screw), Socket welded, Hose connection |
| Thread standard | DIN2999, BSP, BSPT, NPT, Metric(ISO) |
| Production process | Mold making, Precision casting(Investment Casting), Testing, CNC machining, Testing, Assembling |
| Certificate | ISO9001, National Certificate, SGS. (Other certificates can be applied with each shipment) |
| Applications | Fluid and pipeline transportation, Petroleum industry, Chemical and metallurgy, Medicine and Food industry |
| Package | Paper box with woven bag/Wooden Box/As customers' requirements |
| Delivery | Based on quantity, normally 30-45 days / Delivery from Tianjin port or as customers' choice |
